2015-2023

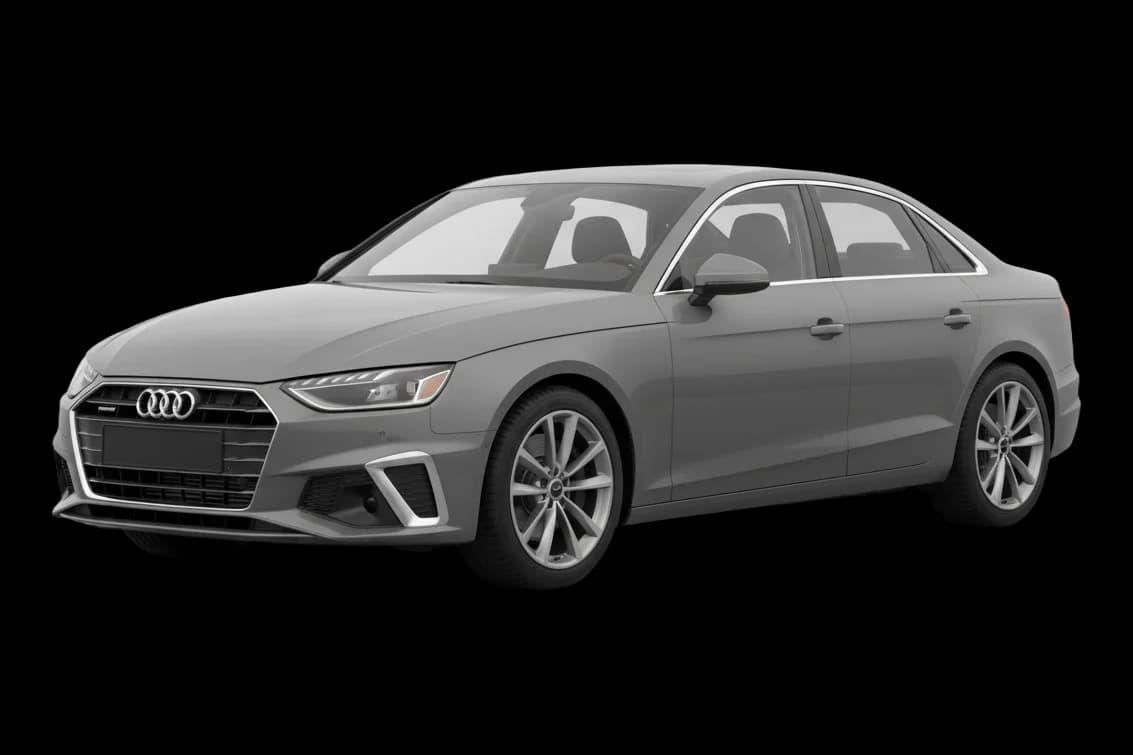

Front 3/4Click to expand
What makes it iconic
The lightest A4 in a generation — the B9 used ultra-high-strength steel and aluminum to shed up to 65 kg from its predecessor while growing in size.
History
The B9 A4 introduced Audi's Virtual Cockpit — a fully digital instrument cluster that replaced traditional gauges with a configurable 12.3-inch display. The RS4 Avant returned with a 450-hp biturbo V6.
Timeline
2015Production begins
2023Production ends
Production & Heritage
Production Total800,000
DesignerJürgen Loftier
Production Period2015-2023
Estimated Value$12K-$28K
Value estimates are editorial assessments based on recent auction results and market trends.
Technical Specifications
Engine2.0L Inline-4 TFSI
Power252 hp @ 5,000 rpm
Torque370 Nm
0-60 mph5.6 sec
Top Speed250 km/h
Transmission7-speed S-tronic
DrivetrainFWD
Weight1,470 kg
Drag CoefficientCd 0.23
BodySteel and aluminum hybrid (ultra-lightweight) unibody
Engine Details
Engine CodeDDWA
Displacement2.0L (1,984 cc)
Bore x Stroke82.5 x 92.8 mm
Compression9.6
Valves16
Fuel SystemCombined direct and port injection (FSI) with turbocharger
Engine ManagementBosch MED 17.1.10
Performance
0-100 km/h5.8 sec
0-60 mph5.6 sec
Top Speed250 km/h
Fuel Economy6.2 l/100km combined
Weight-to-Power5.8 kg/hp
Dimensions
Length4,726 mm
Width1,842 mm
Height1,427 mm
Wheelbase2,820 mm
Chassis & Suspension
Front SuspensionFive-link independent with coil springs and anti-roll bar
Rear SuspensionFive-link independent with coil springs and anti-roll bar
Front BrakesVentilated discs 338mm
Rear BrakesSolid discs 300mm
SteeringProgressive electromechanical power steering
Tires225/50 R17
Wheels7.5J x 17
Stability SystemsESP, ABS, EBD, ASR, EDL, ESC
Drivetrain
Gear Ratios1st 3.188, 2nd 2.190, 3rd 1.517, 4th 1.057, 5th 0.738, 6th 0.613, 7th 0.508 (7-speed S tronic)
Final Drive4.27
Capacity
Fuel Tank58 L
Trunk Volume480 L
Doors4
Seats5
Source: Wikipedia, auto-data.net
