Delta HF Integrale Evo II

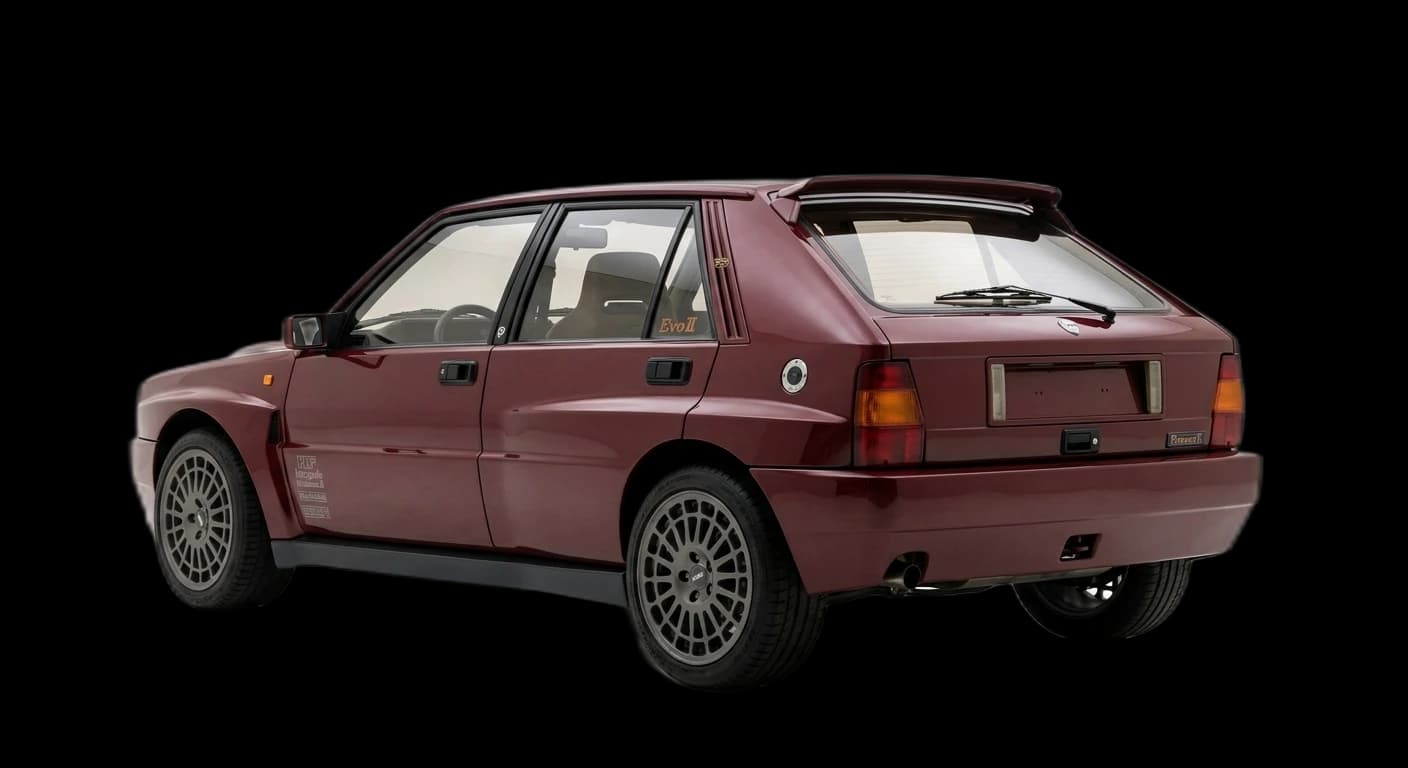

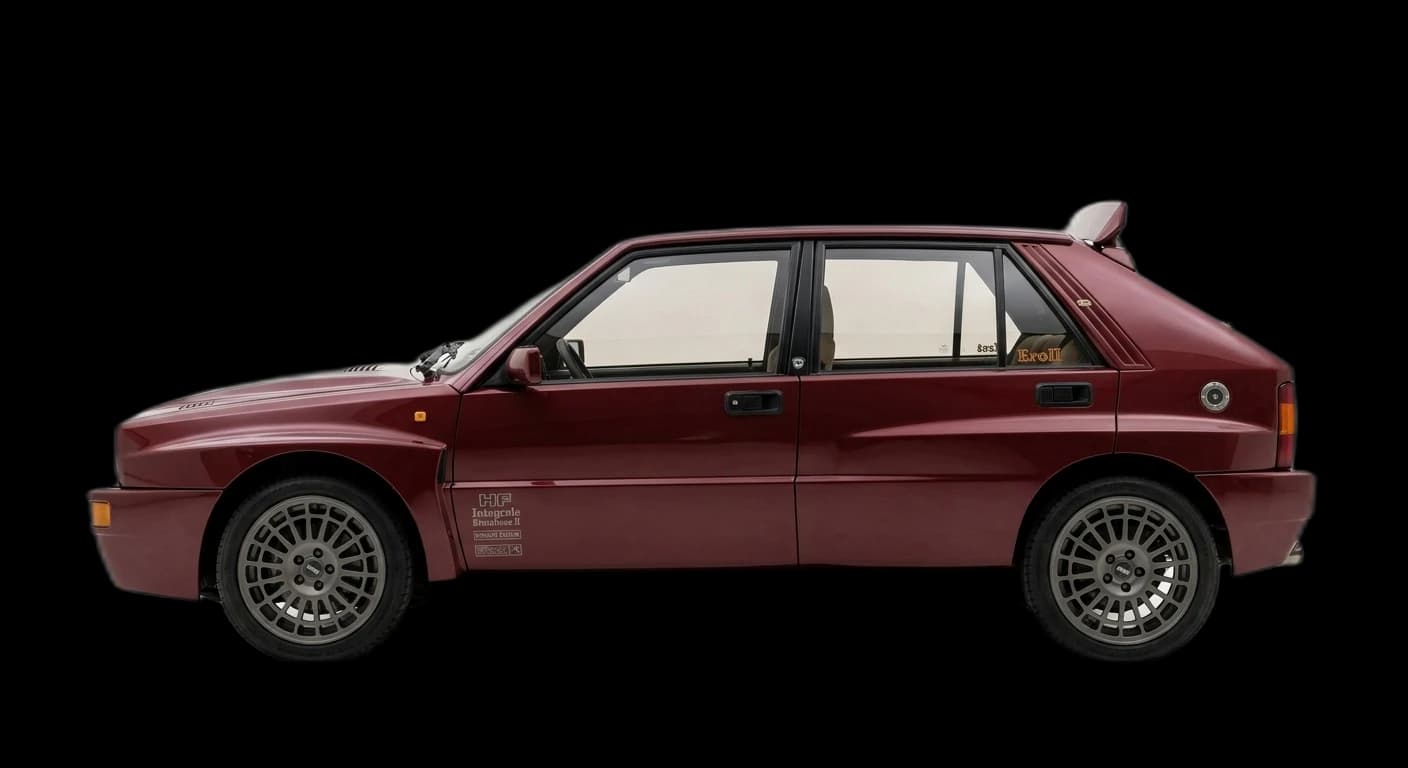

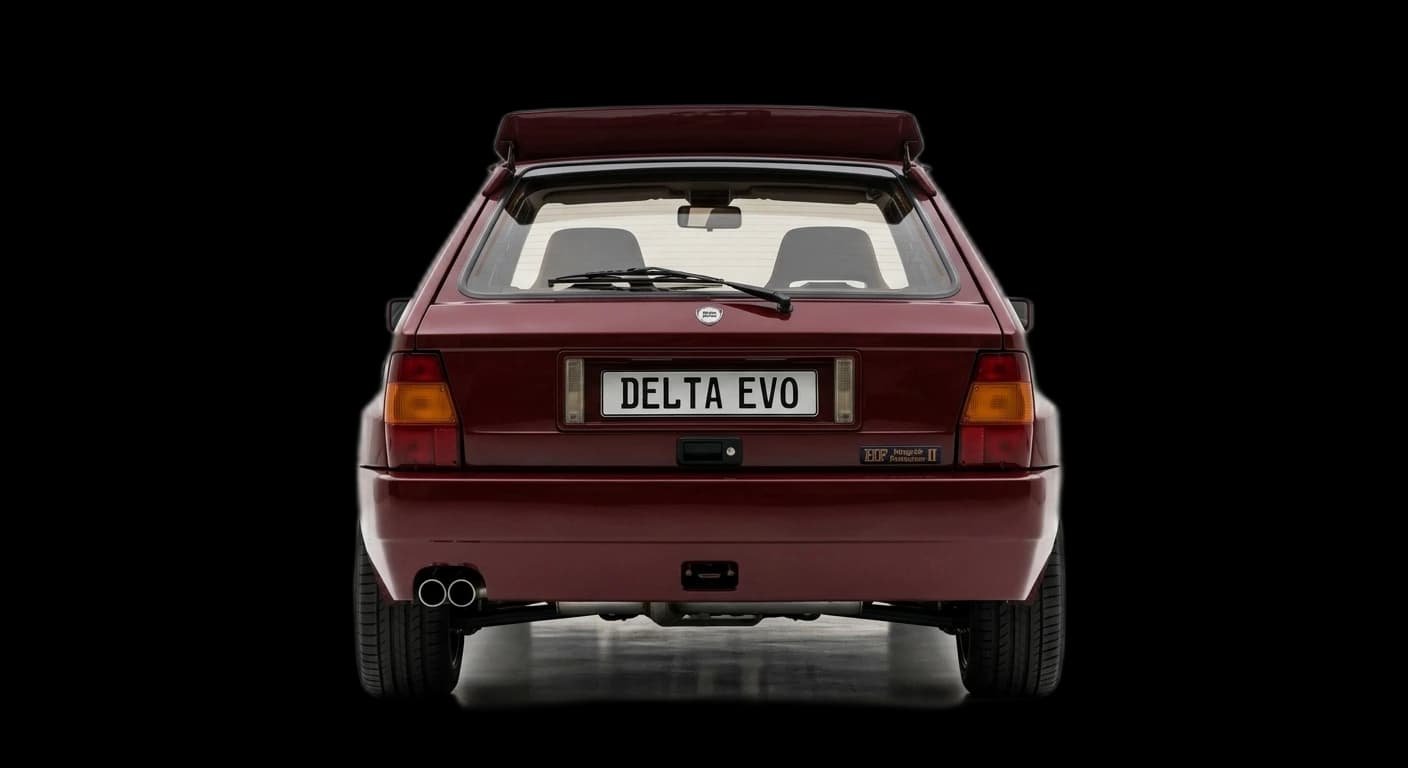

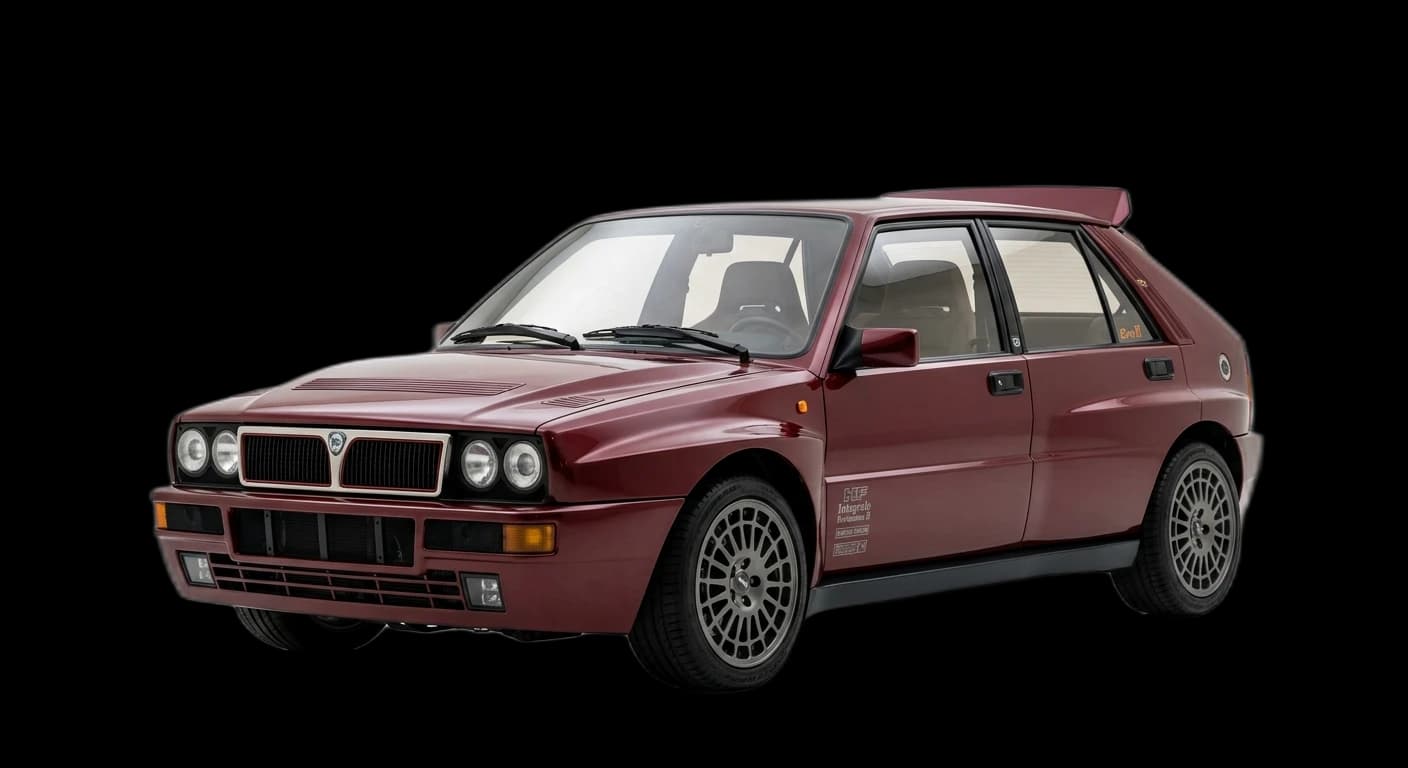

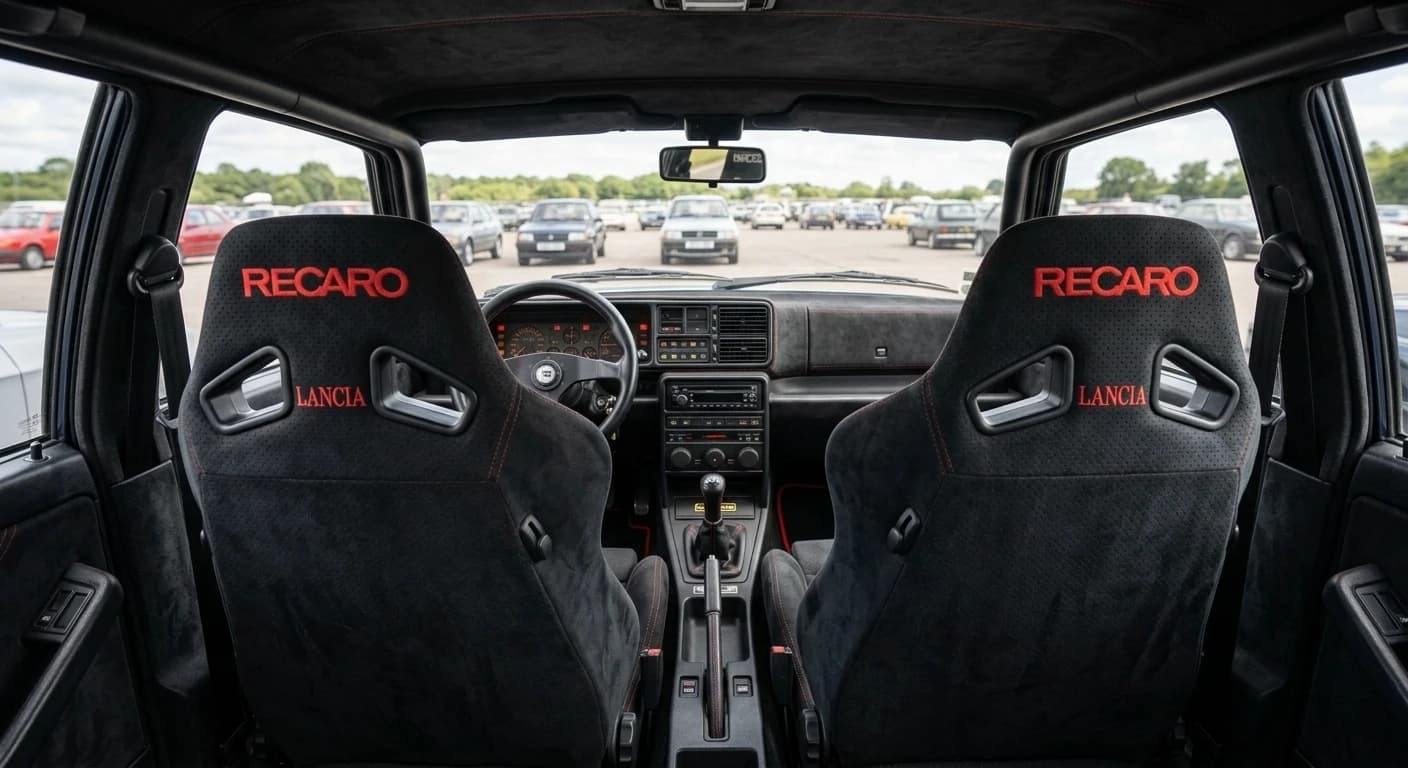

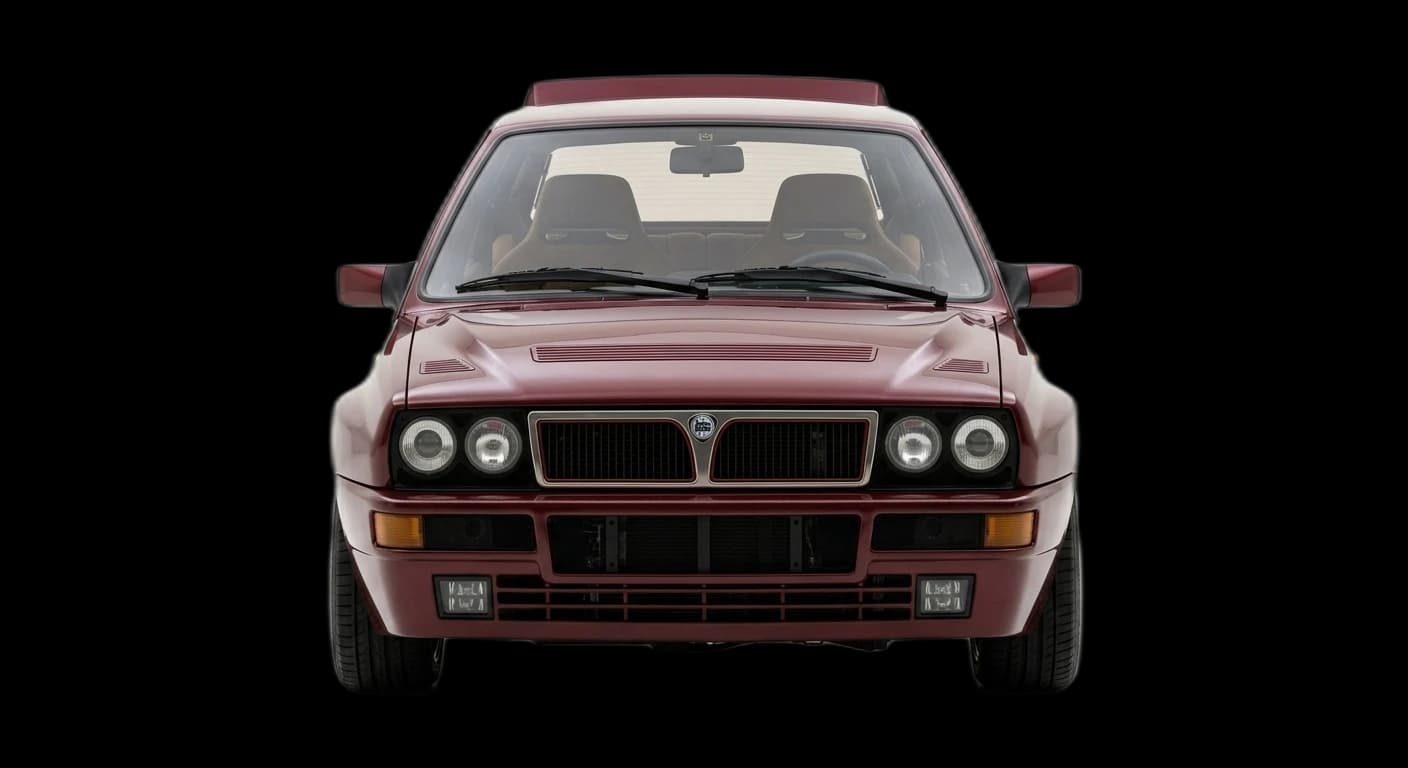

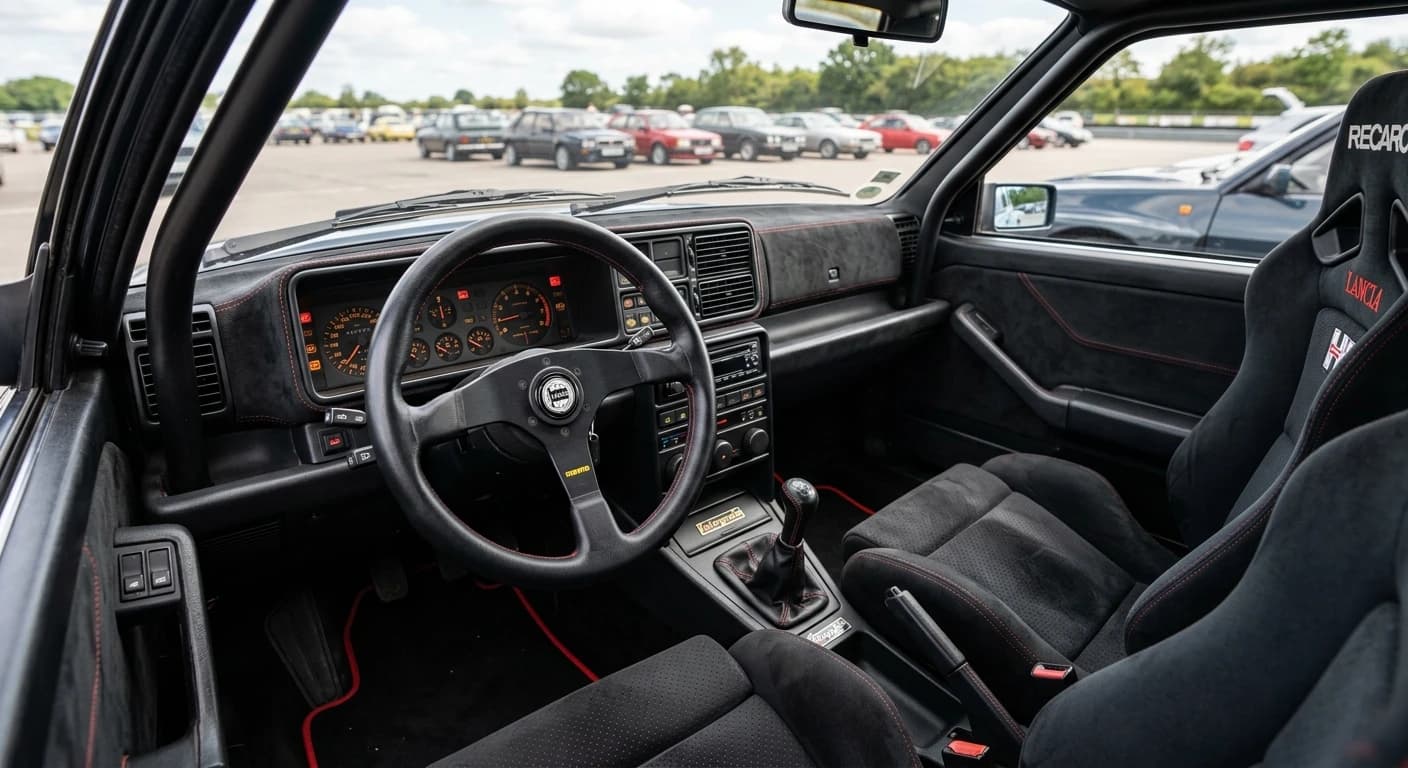

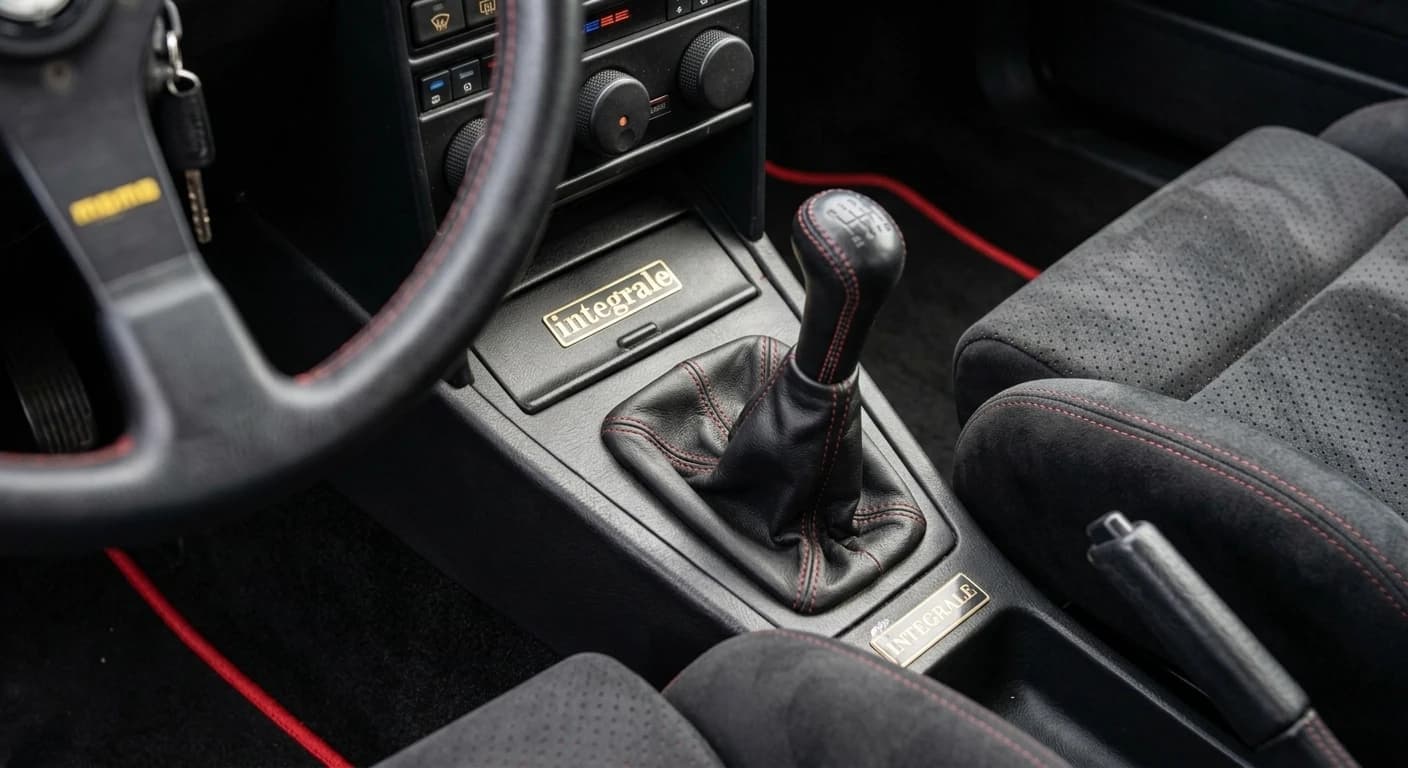

Lancia Delta HF Integrale Evo II 1991 - Front 3/4 viewLancia Delta HF Integrale Evo II 1991 - Front viewLancia Delta HF Integrale Evo II 1991 - Side viewLancia Delta HF Integrale Evo II 1991 - Rear 3/4 viewLancia Delta HF Integrale Evo II 1991 - Rear viewLancia Delta HF Integrale Evo II 1991 - Dashboard viewLancia Delta HF Integrale Evo II 1991 - Interior viewLancia Delta HF Integrale Evo II 1991 - Detail view
Front 3/4

Six consecutive WRC manufacturer championships (1987-1992). The most successful rally car in history.

History

The Evolution II was the final development of the Delta Integrale, produced in 1993-1994. It featured wider wheel arches, an adjustable center differential, and the 2.0-liter turbocharged four-cylinder producing 215 PS.

The wider track and revised suspension geometry improved the car's already legendary handling. The Evo II was the closest thing to a Group A rally car that could be registered for the road.

The Delta platform won six consecutive World Rally Championship manufacturers' titles from 1987 to 1992. The Evo II represented the culmination of that development.

Approximately 5,000 Evo IIs were built. Values have risen significantly, with clean examples commanding EUR 80,000 to EUR 150,000.

Timeline

1987The Delta platform won six consecutive World Rally Championship manufacturers' titles from 1987 to 1992
1991Production begins
1993The Evolution II was the final development of the Delta Integrale, produced in 1993-1994
1994Production ends

Production & Heritage

Production Total5,000
DesignerGiorgetto Giugiaro (base Delta)
Production Period1991-1994
Estimated Value$80K-$150K

Value estimates are editorial assessments based on recent auction results and market trends.

Technical Specifications

Engine2.0L Inline-4 Turbo (831 AB.020)
Power215 hp @ 5,750 rpm
Torque300 Nm
0-60 mph5.7 sec
Top Speed220 km/h
Transmission5-speed manual
DrivetrainAWD
Weight1,340 kg
BodySteel unibody, widened fenders

Engine Details

Engine CodeFiat/Lancia 831 AB.020S turbo inline-4 1995cc
Displacement2.0L (1,995 cc)
Bore x Stroke84 x 90 mm
Compression8
Fuel SystemWeber-Marelli IAW injection, Garrett T3 turbo

Performance

0-100 km/h5.7 sec
0-60 mph5.7 sec
Top Speed220 km/h
Weight-to-Power6.2 kg/hp

Dimensions

Length3,900 mm
Width1,770 mm
Height1,366 mm
Wheelbase2,480 mm

Chassis & Suspension

Front SuspensionMacPherson strut, coil springs, anti-roll bar
Rear SuspensionMacPherson strut, coil springs, anti-roll bar
Front BrakesVentilated disc, 284 mm (Brembo)
Rear BrakesSolid disc, 270 mm
SteeringRack-and-pinion, power-assisted
Tires205/45 ZR16

Capacity

Fuel Tank55 L
Trunk Volume260 L
Doors5
Seats5
