Auto Heritage
Lancia·Sports

Delta HF Integrale

1987-1994
M3 (E30)
M3 (E30)1986-1991
72/175
F401987-1992
F40

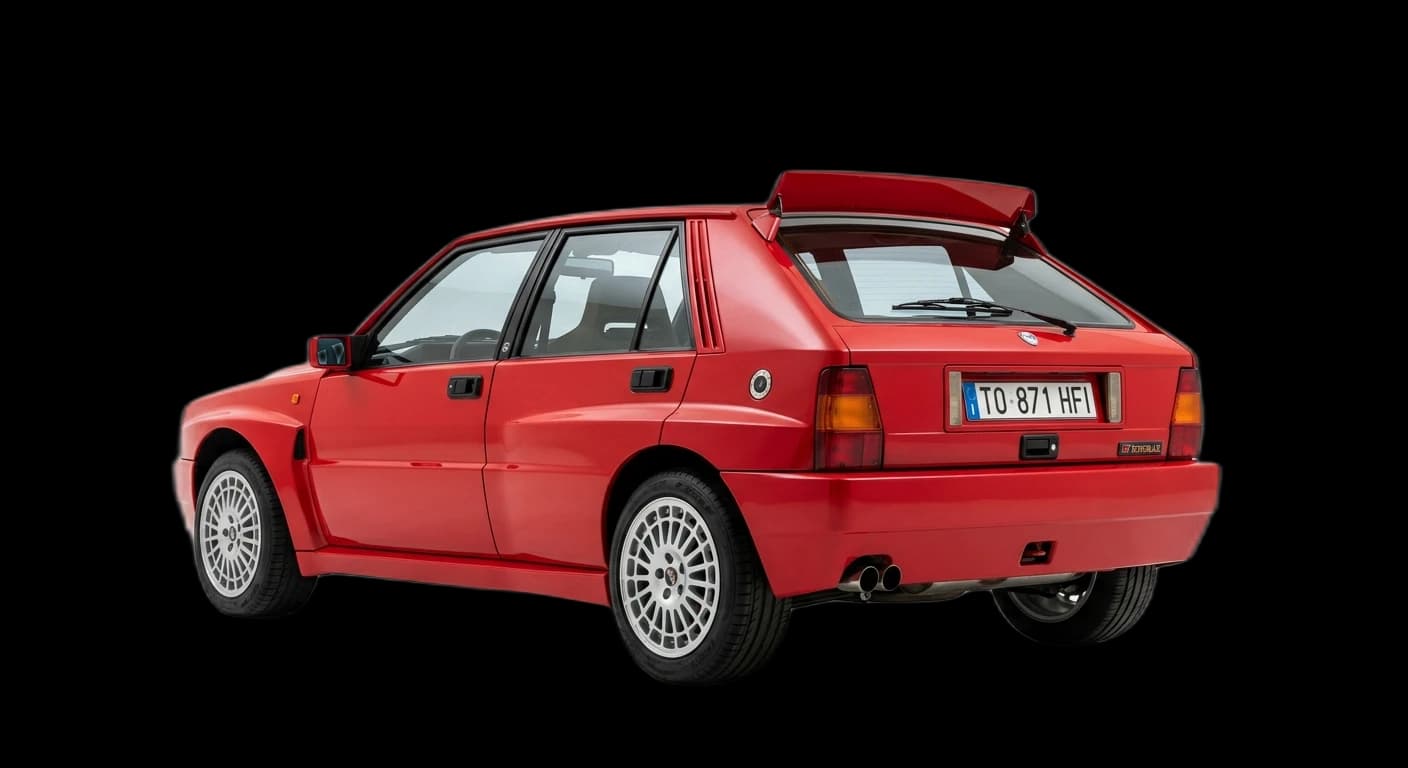

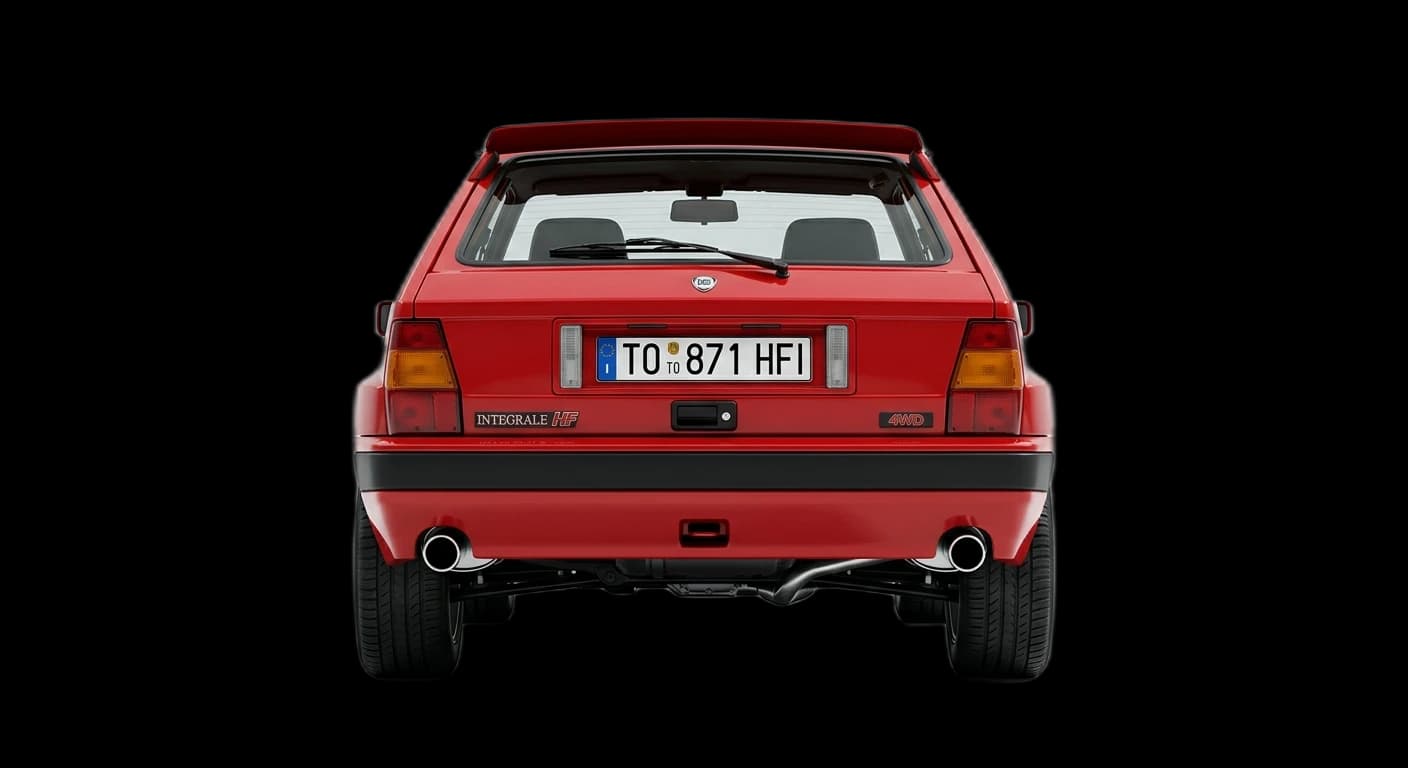

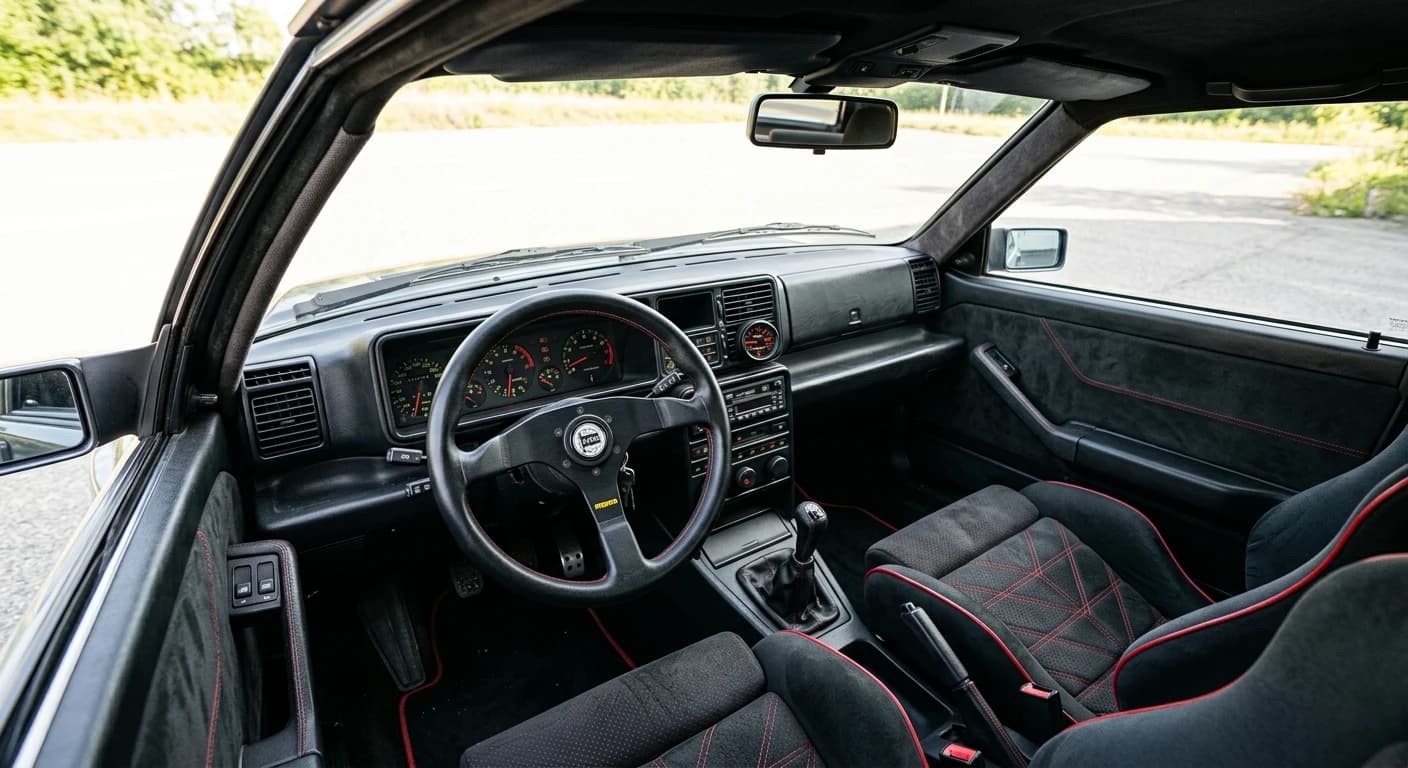

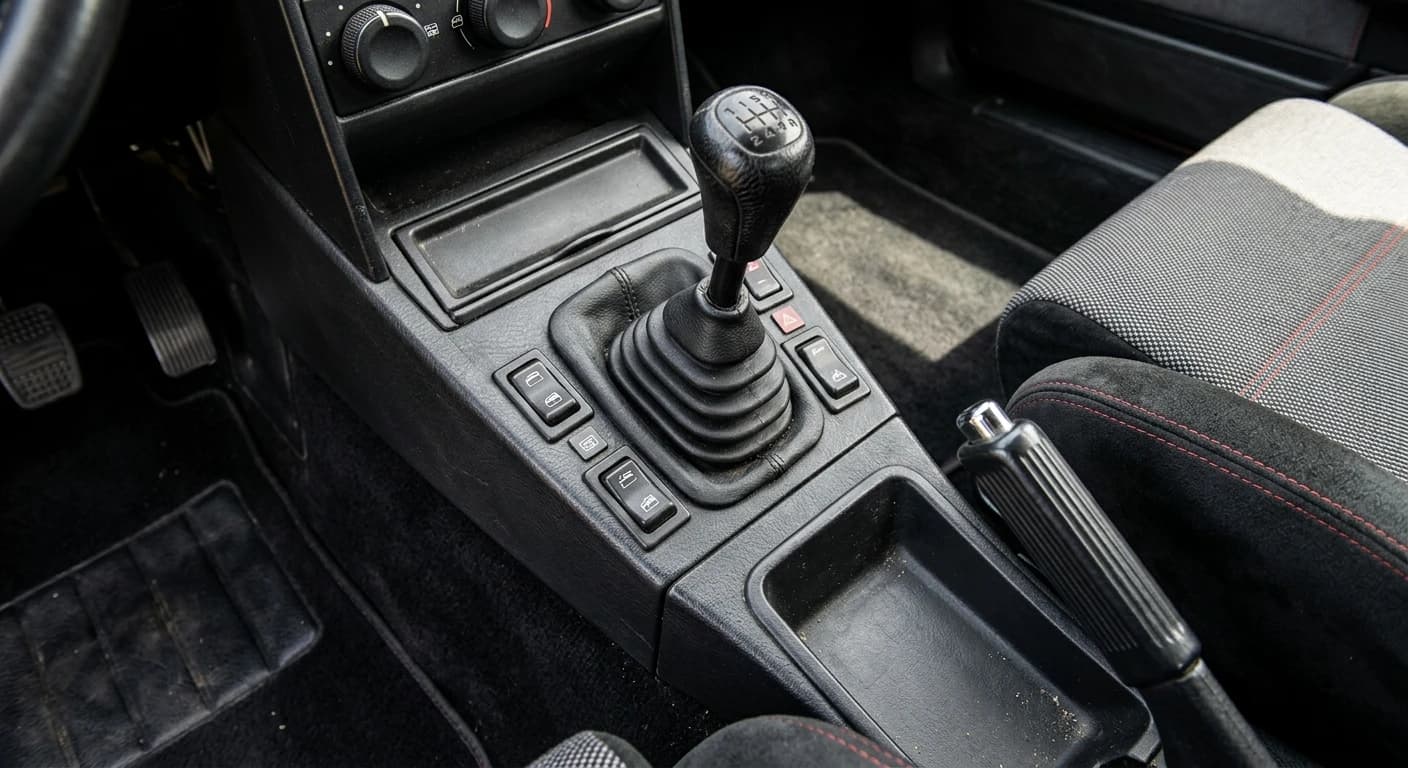

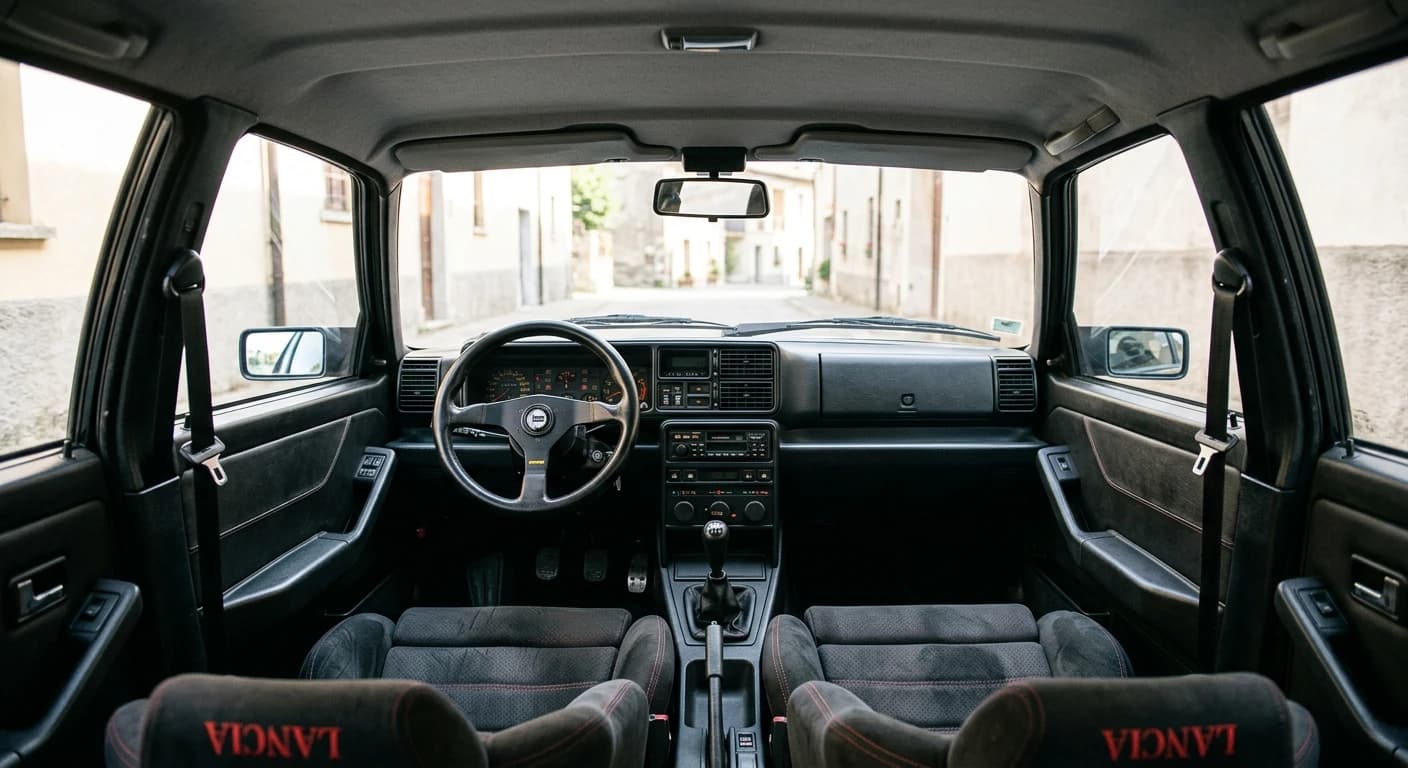

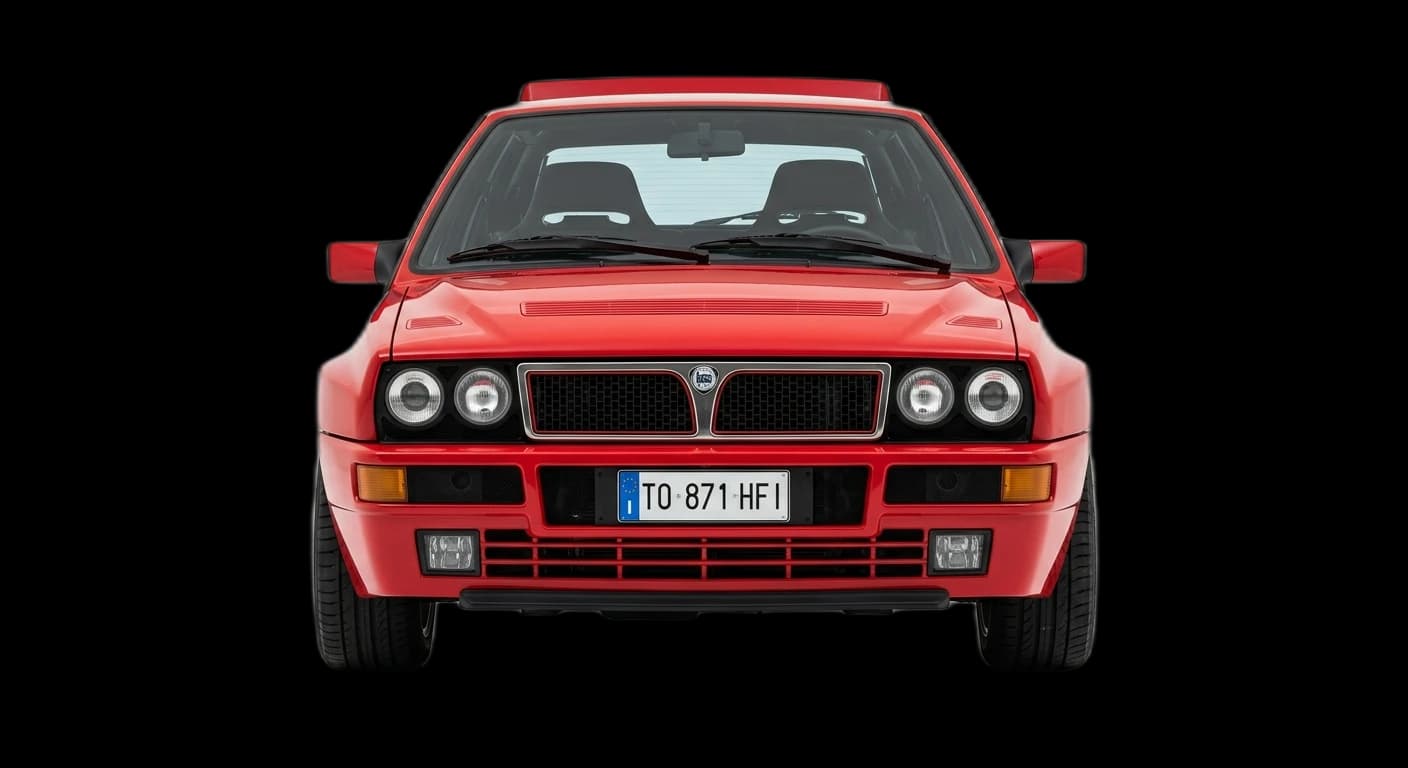

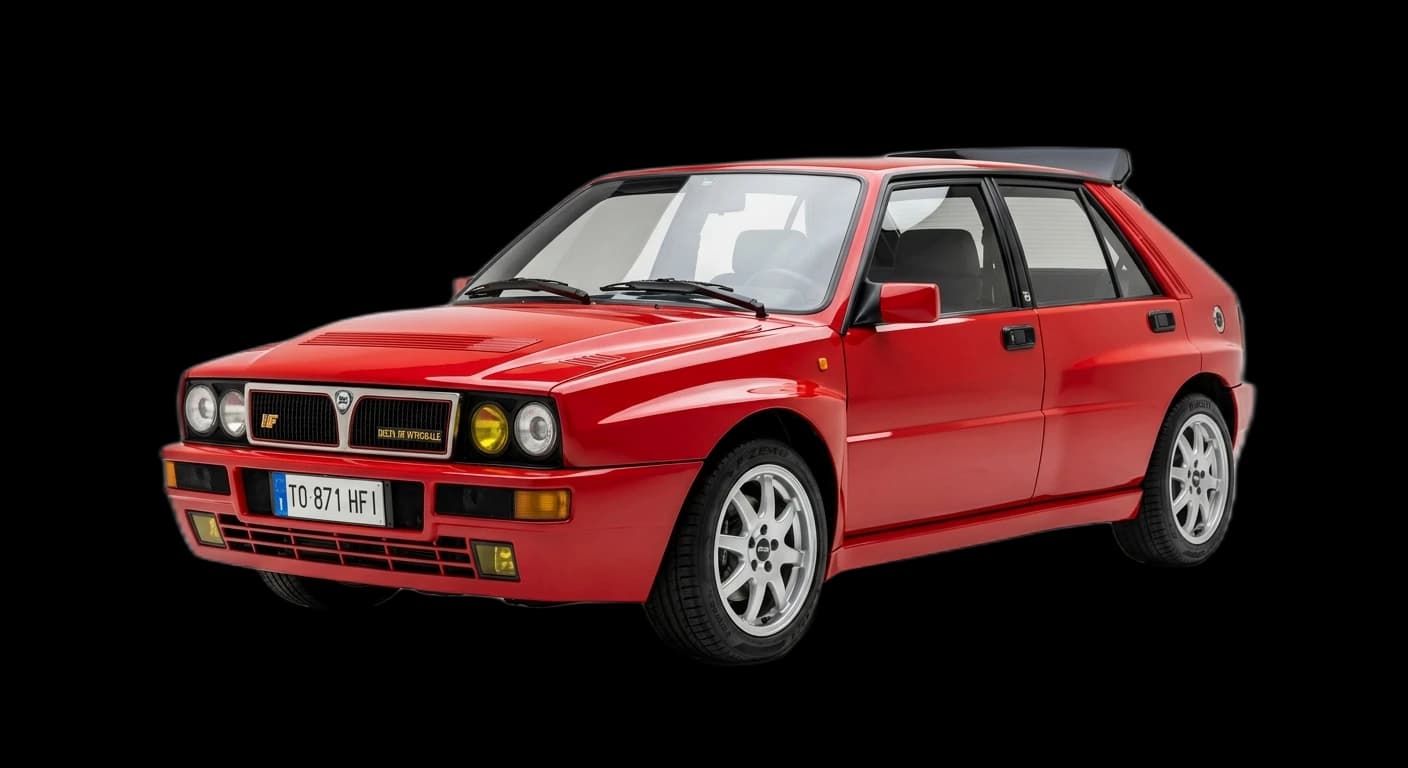

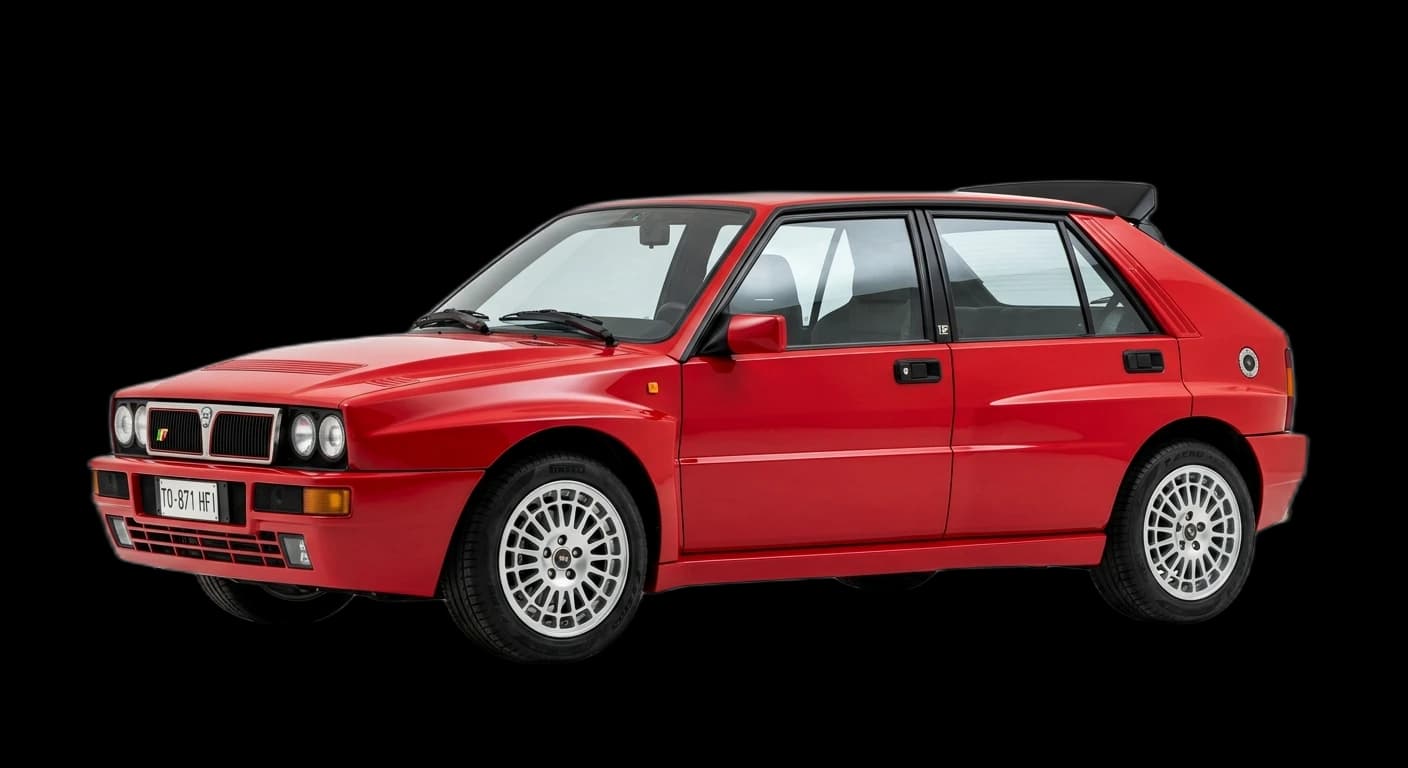

Lancia Delta HF Integrale 1987 - Front 3/4 viewLancia Delta HF Integrale 1987 - Front viewLancia Delta HF Integrale 1987 - Side viewLancia Delta HF Integrale 1987 - Rear 3/4 viewLancia Delta HF Integrale 1987 - Rear viewLancia Delta HF Integrale 1987 - Dashboard viewLancia Delta HF Integrale 1987 - Interior viewLancia Delta HF Integrale 1987 - Detail view
Front 3/4
Motorsport legend

Six consecutive World Rally Championship titles. The Delta Integrale is the most successful rally car in history, built in road-legal form because the rules demanded it.

History

The Delta HF Integrale dominated the WRC like no car before or since. Its turbocharged four-cylinder, permanent all-wheel drive, and progressive widebody evolution from 8V to 16V to Evoluzione created a lineage that collectors now worship. Road versions are crude by modern standards, but that crudeness is the point.

Timeline

1987Begins an unprecedented six consecutive World Rally Championship titles for Lancia
1992Evo 2 version: the most powerful and successful Group A rally car ever built
1994Production ends

Production & Heritage

Production Total44,296
DesignerGiorgetto Giugiaro
Production Period1987-1994
Estimated Value$50K-$120K

Value estimates are editorial assessments based on recent auction results and market trends.

Technical Specifications

Engine2.0L Inline-4 Turbo
Power215 hp @ 5,750 rpm
Torque304 Nm
0-60 mph5.5 sec
Top Speed220 km/h
Transmission5-speed manual
DrivetrainAWD
Weight1,340 kg
Body"Steel monocoque with widened fenders"

Engine Details

Engine Code"831 AB.020"
Displacement2.0L (1,995 cc)
Bore x Stroke84 x 90 mm
Compression"8.0:1"
Valves"DOHC, 4 valves per cylinder, 16 total"
Fuel System"Multi-point injection with turbocharger and intercooler"

Performance

0-100 km/h5.7 sec
0-60 mph5.5 sec
Top Speed220 km/h
Fuel Economy"11.5 L/100km combined"
Weight-to-Power6.2 kg/hp

Dimensions

Length3,900 mm
Width1,770 mm
Height1,360 mm
Wheelbase2,479 mm
Track (Front)1476 mm
Track (Rear)1466 mm

Chassis & Suspension

Front Suspension"MacPherson struts, coil springs, anti-roll bar"
Rear Suspension"MacPherson struts, coil springs, anti-roll bar"
Front Brakes"Ventilated discs, 284 mm"
Rear Brakes"Solid discs, 249 mm"
Steering"Rack and pinion, hydraulic power assist"
Tires"205/45 ZR16"
Stability Systems"ABS (Evo models)"

Capacity

Fuel Tank60 L
Trunk Volume290 L
Doors5
Seats5

Source: "Training data (Lancia factory specs)"
