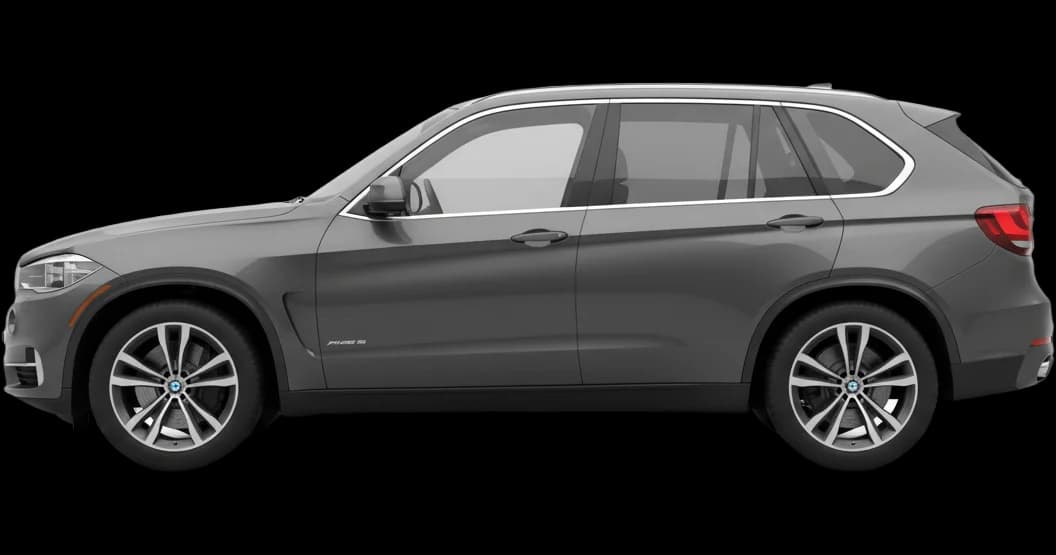

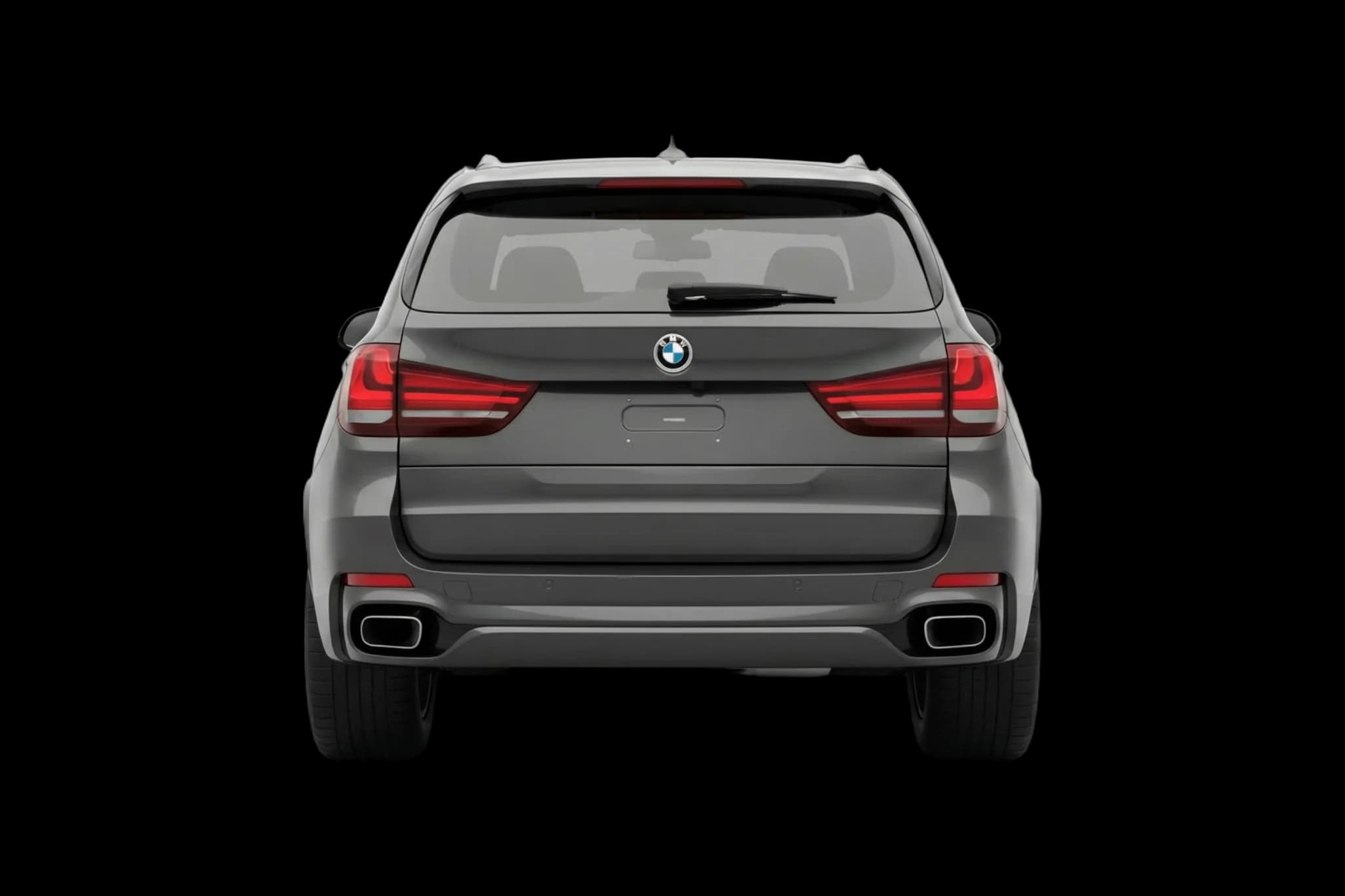

BMW X5 (F15) 2013 - Front 3/4 viewBMW X5 (F15) 2013 - Front viewBMW X5 (F15) 2013 - Side viewBMW X5 (F15) 2013 - Rear 3/4 viewBMW X5 (F15) 2013 - Rear viewBMW X5 (F15) 2013 - Dashboard viewBMW X5 (F15) 2013 - Interior viewBMW X5 (F15) 2013 - Detail view
Front 3/4
Motorsport legend

The third-generation X5 that perfected the Sports Activity Vehicle formula. The F15 was lighter than the E70 despite being larger, thanks to extensive aluminum construction.

History

BMW's use of aluminum doors, hood, fenders, and roof saved 90 kg over the outgoing model. The X5 M's S63 twin-turbo V8 produced 575 hp, making it faster than most sports sedans.

Timeline

2013Production begins
2018Production ends

Production & Heritage

Production Total725,000
DesignerKarim Habib
Production Period2013-2018
Estimated Value$18K-$35K

Value estimates are editorial assessments based on recent auction results and market trends.

Technical Specifications

Engine3.0L Inline-6 Turbo (N55)
Power306 hp @ 5,800 rpm
Torque400 Nm
0-60 mph6.1 sec
Top Speed235 km/h
Transmission8-speed automatic (ZF)
DrivetrainAWD
Weight2,075 kg
Drag CoefficientCd 0.31
BodySteel unibody with aluminum components

Engine Details

Engine CodeN55B30
Displacement3.0L (2,979 cc)
Bore x Stroke84 x 89.6 mm
Compression10.2
Valves24
Fuel SystemDirect injection, twin-scroll turbocharger
Engine ManagementBosch MEVD17.2, Valvetronic, Double VANOS

Performance

0-100 km/h6.5 sec
0-60 mph6.1 sec
Top Speed235 km/h
Fuel Economy8.9 l/100km combined
Weight-to-Power6.8 kg/hp

Dimensions

Length4,886 mm
Width1,938 mm
Height1,762 mm
Wheelbase2,933 mm

Chassis & Suspension

Front SuspensionDouble wishbone, air springs optional, anti-roll bar
Rear SuspensionMulti-link, air springs optional, anti-roll bar
Front BrakesVentilated disc
Rear BrakesDisc
SteeringRack-and-pinion, electric power-assisted
Tires255/55 R18
Wheels18-inch alloy
Stability SystemsDSC, DTC, ABS, CBC, DBC, HDC, xDrive

Drivetrain

Gear Ratios4.714 / 3.143 / 2.106 / 1.667 / 1.285 / 1.0 / 0.839 / 0.667 (8-speed auto)
Final Drive3.154

Capacity

Fuel Tank85 L
Trunk Volume650 L
Doors5
Seats5

Source: BMW AG / Wikipedia

Tags

Inline-5Inline-6TurbochargedAWDSUV2010sAutomatic

Designed by Karim Habib
